TDF Fully Duct Line Automatic
| Maximize your ductwork production with this fully automatic TDF duct line. A complete system for high-volume, precision HVAC duct manufacturing.
|
Product Description

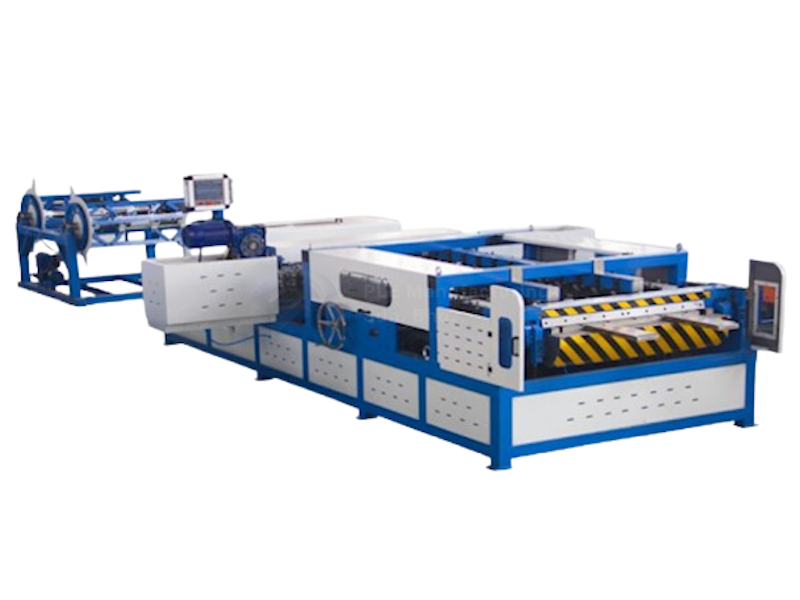

| The fully automatic duct production line is designed to form TDF/angle flanges or "C" shapes, with a daily processing capacity of 2,000 square meters. It automates the entire process, including uncoiling, leveling, pressing, angle punching, cut-to-length cutting, combined angle seaming, and the forming of common plate flanges, angle steel flanges, or C-shaped flanges, as well as folding. |
| |
Highlights:
- Compact design taking up minimum space, easy to assemble, ideal for small to medium factories.
- Servo-pneumatic robotic arm for smooth, precise, and faster feeding.
- Highly efficient, each L-shaped piece takes only 20-25 seconds, doubling productivity.
- Fixed seaming machine improves efficiency by eliminating movement time.
- Steel bearing rollers extend service life by over 5 times.
- CNC system with material-saving mode leaves less than 20mm scrap per roll.
- Features production memory and order query functions.
|
| |
| Weight |
6500 kg |
| Tolerance |
0.5 mm/m |
| Material feed speed |
up to 15 m/min |
| Pressure |
8 mPa |
| Power |
24 kW |
| Minimum dimension of duct |
150mm |
| Coil length |
1250mm |
| Material |
GI 0.5-1.2mm, SS 0.5-1.0mm |
| Overall dimension |
L10,000 (+1000mm) x W4000 x H1500mm |
|
