Flanging Machine

Flanging Machine

Form precise flanges on pipes and sheet metal with ease using our durable and user-friendly flanging machines, suitable for various industrial applications.

Product Description

Special features: This machine is specifically designed for flanging the edges of cylindrical ends. It utilizes a vertical structure with full hydraulic operation, completing the flanging process of one end in a single clamping. The workpiece is manually loaded and unloaded, and once the motor initiates rotation, the hydraulic feed system drives the forming die to precisely shape the workpiece.

Workplace Diameter 100mm – 2000mm
Workpiece material Less than 3mm for MS/GI plate
Less than 2.5mm for Stainless Steel
Spindle motor power 0.75kW, 380V, 50Hz speed controlled by inverter
Oil pump motor power 1.5kW, 380V, 50Hz
Hydraulic oil storage capacity 30L

Frequently Purchase Together

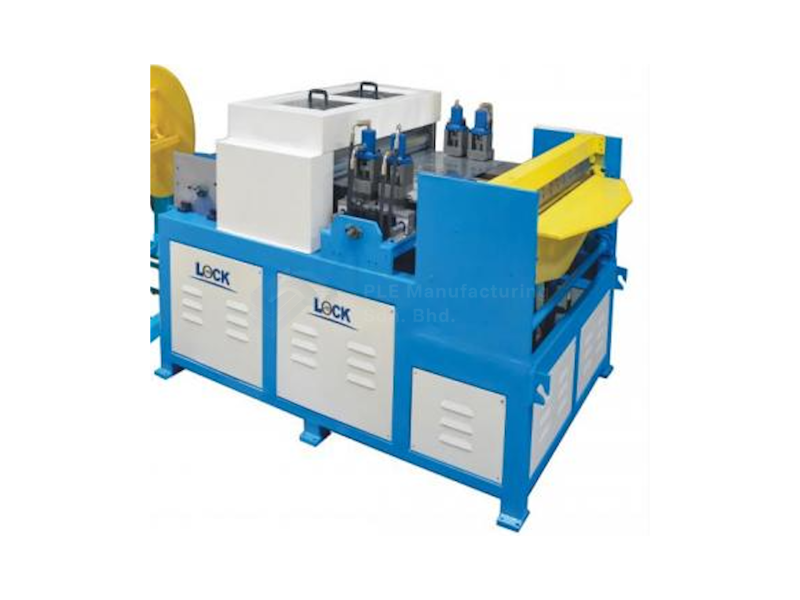

TDF Flange Forming & Bending Machine
