Hydraulic Press Brake Machine

Performance and features:

An all-steel welded structure, which eliminates stress through vibration, ensuring high mechanical strength and good rigidity. It uses hydraulic transmission, providing stable and reliable performance.
Has a mechanical stop and torsion bar synchronization for high precision.
The back gauge distance and upper slider stroke are adjusted electrically, with all adjustments displayed digitally.
For enhanced performance, the upper die is equipped with a deflection compensation mechanism. Machines with a capacity of 250 tons and lengths above 4000mm also include a lower deflection compensation mechanism.

Basic Configuration

Hydraulic System: Equipped with a hydraulic system from renowned domestic manufacturers, main valves equipped with Taifeng or Huade components.
Internal Gear Pump: Sino-US joint venture internal gear pump (Sunny).
Oil Cylinder: Main seal from Valqua or Dingji.
Electrical System: Equipped with a digital display, Siemens main motor (optional) or Nantong Hengli motor.
Other Main Parts: One set of top and bottom molds, front supporter.

Model	Nominal Pressure / kN	Length / mm	Throat Depth / mm	RAM Stroke / mm	Motor Power
WD67K-30T/1600	300	1600	250	100	4
WD67K-30T/1600 special C clip bending	300	1600	250	100	4
WC67Y-100/2500	1000	2500	320	120	7.5
WC67K-100/4000	1000	4000	320	120	7.5
Optional: Press brake anti-hand crushing device laser sensor	-	-	-	-	-

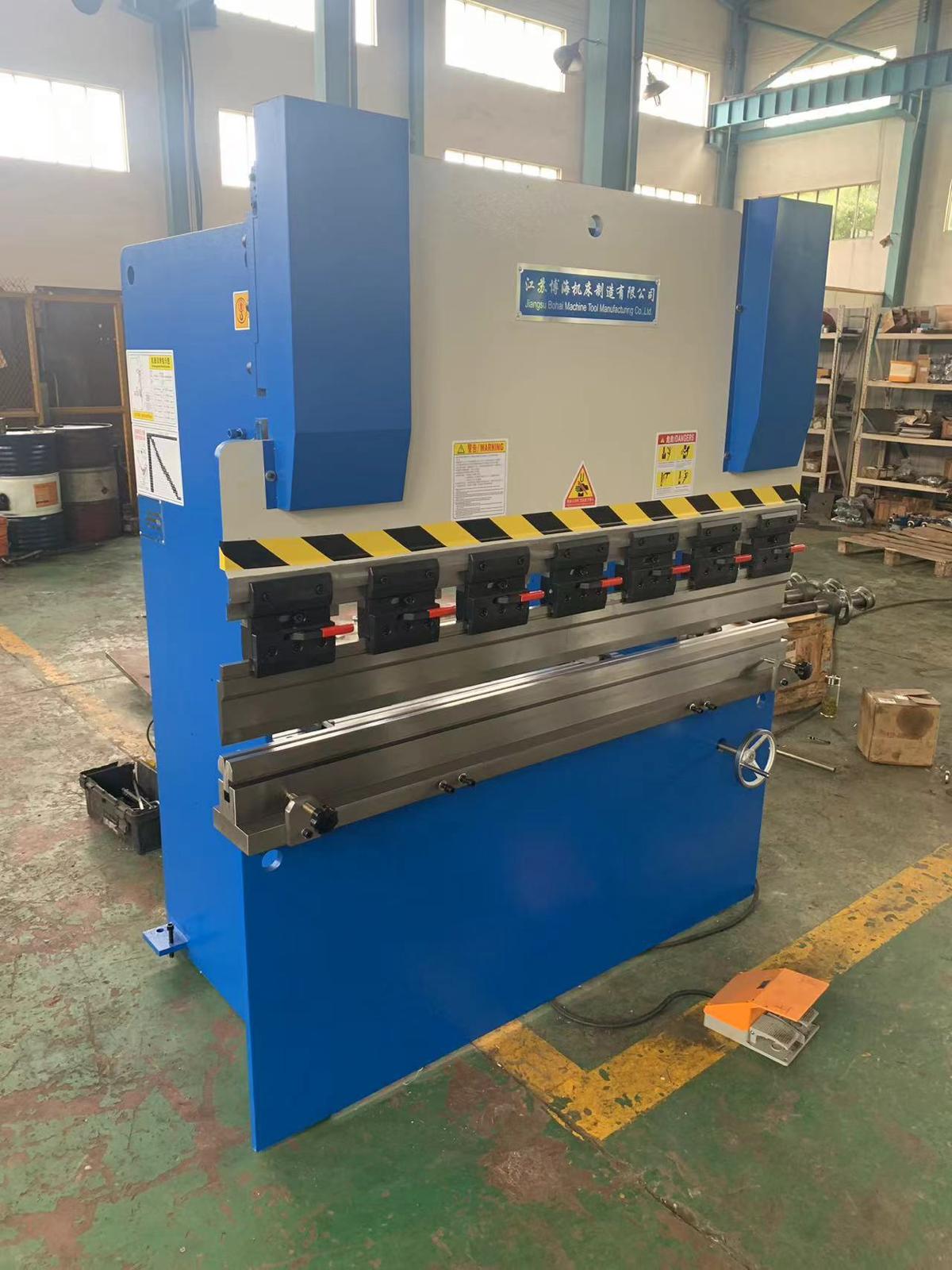

1.6m Hydraulic Press Brake Machine (special c clip bending)

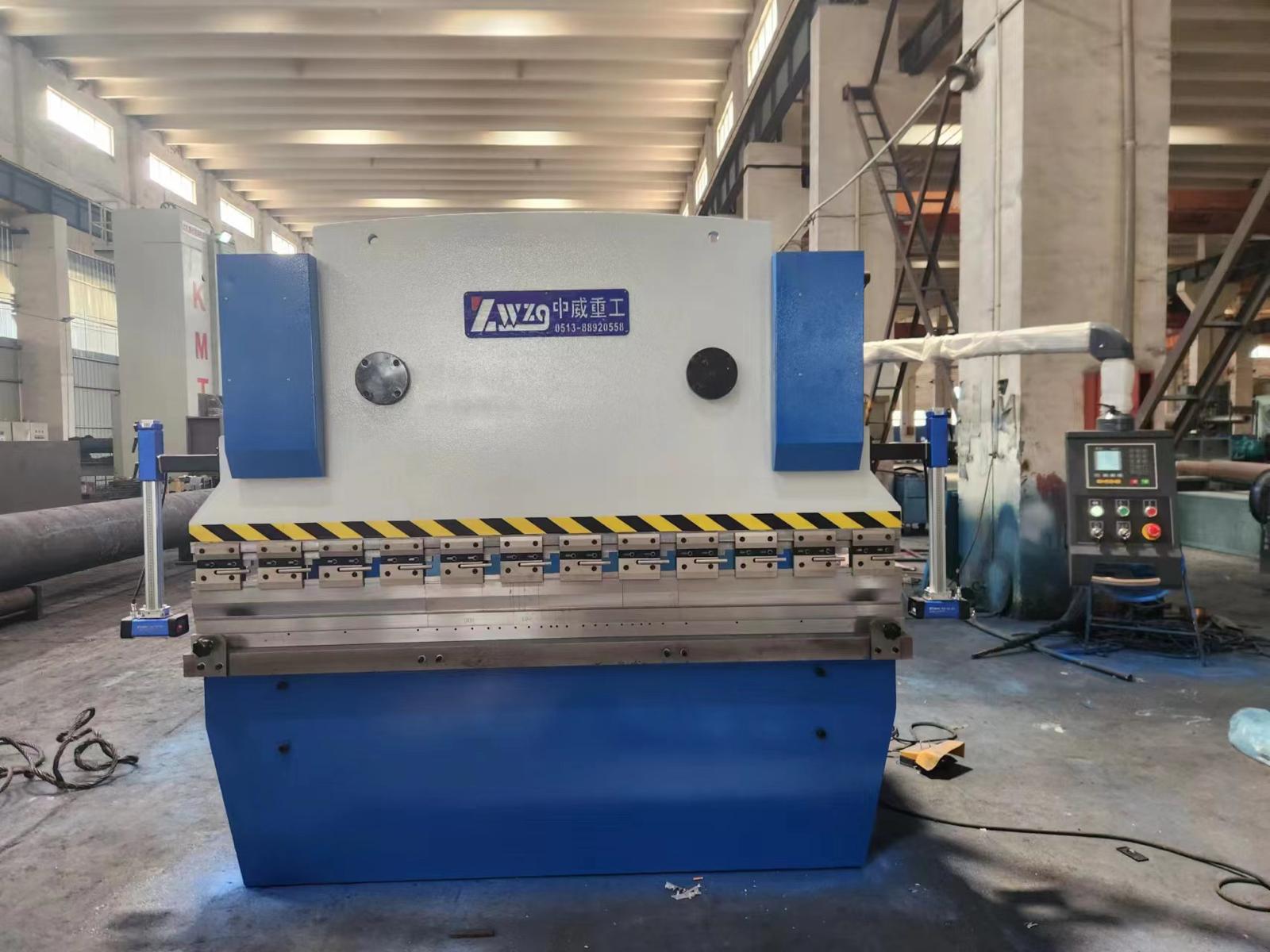

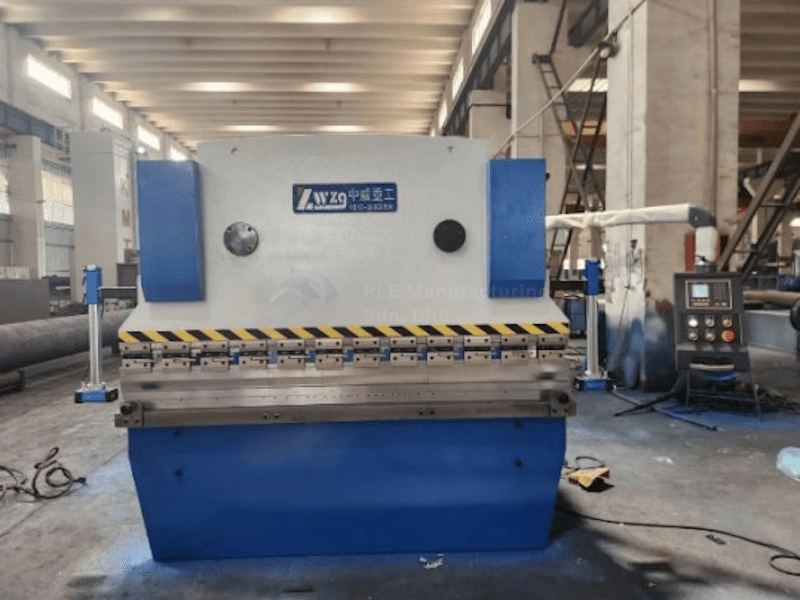

2.5m Hydraulic Press Brake Machine

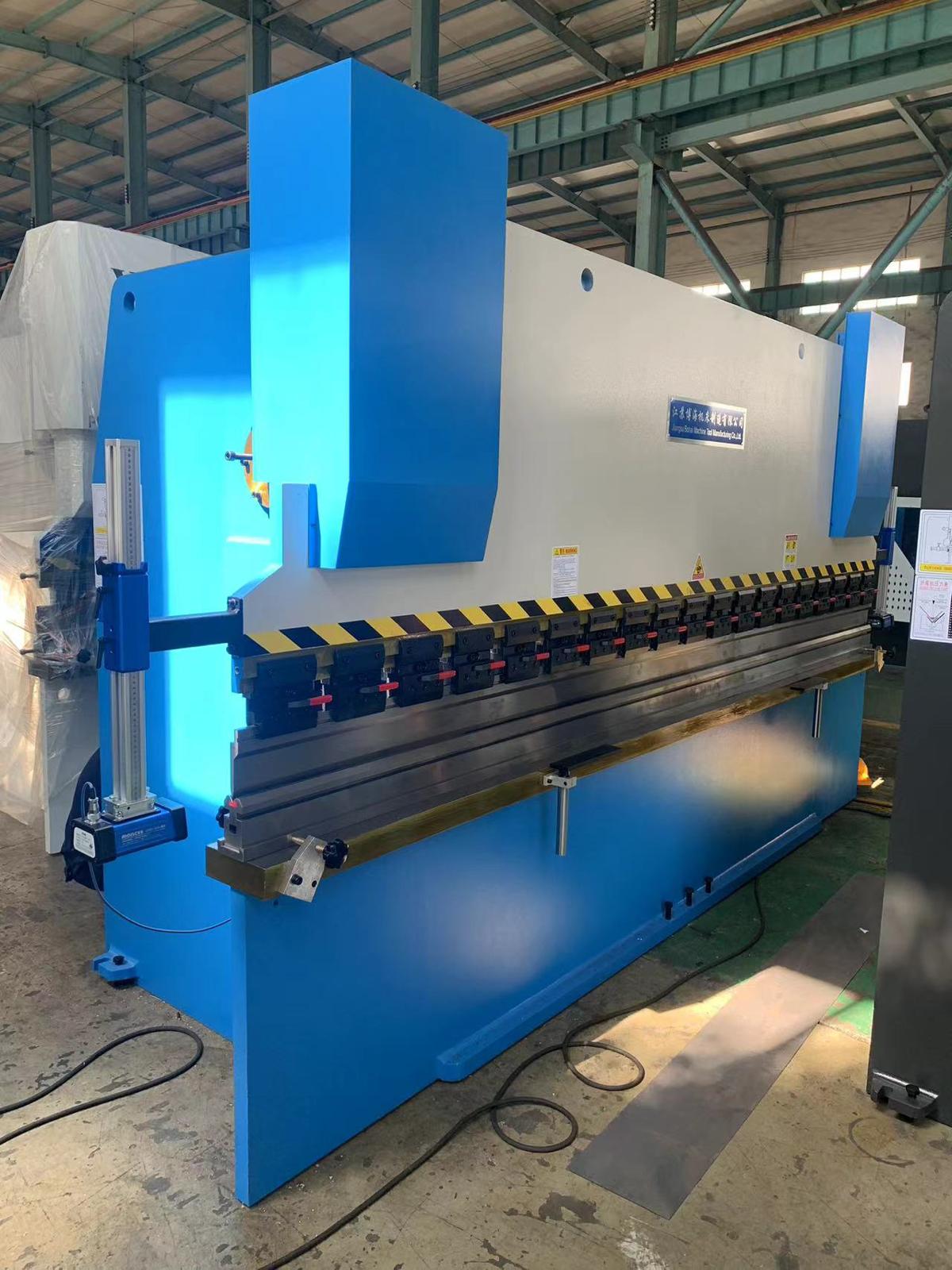

4m Hydraulic Press Brake Machine

Performance and features:

An all-steel welded structure, which eliminates stress through vibration, ensuring high mechanical strength and good rigidity. It uses hydraulic transmission, providing stable and reliable performance.
Has a mechanical stop and torsion bar synchronization for high precision.
The back gauge distance and upper slider stroke are adjusted electrically, with all adjustments displayed digitally.
For enhanced performance, the upper die is equipped with a deflection compensation mechanism. Machines with a capacity of 250 tons and lengths above 4000mm also include a lower deflection compensation mechanism.

Basic Configuration

Hydraulic System: Equipped with a hydraulic system from renowned domestic manufacturers, main valves equipped with Taifeng or Huade components.
Internal Gear Pump: Sino-US joint venture internal gear pump (Sunny).
Oil Cylinder: Main seal from Valqua or Dingji.
Electrical System: Equipped with a digital display, Siemens main motor (optional) or Nantong Hengli motor.
Other Main Parts: One set of top and bottom molds, front supporter.

Model	Nominal Pressure / kN	Length / mm	Throat Depth / mm	RAM Stroke / mm	Motor Power
WD67K-30T/1600	300	1600	250	100	4
WD67K-30T/1600 special C clip bending	300	1600	250	100	4
WC67Y-100/2500	1000	2500	320	120	7.5
WC67K-100/4000	1000	4000	320	120	7.5
Optional: Press brake anti-hand crushing device laser sensor	-	-	-	-	-

1.6m Hydraulic Press Brake Machine (special c clip bending)

2.5m Hydraulic Press Brake Machine

4m Hydraulic Press Brake Machine
